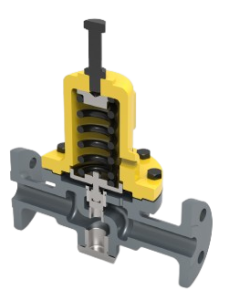

Pressure regulating valve (70000 series) type C and D
Pressure regulating valves include pressure maintaining, reducing and relief valves to provide safe and efficient operating conditions and automatically respond to changes to maintain the set pressure. Depending on the inlet/outlet control pressure, flow capacity and temperature, PSM regulators are classified into six types: Type A-F.
Product Information
Handwheels / T-Handles
Multipurpose
Complete and tight shut-off with elastomer seats
Direct-Operated
Durable and robust
Heavy-duty and industrial construction
Capable of working with differential pressure
Designed for very low temperatures (polar conditions)
Special features for special services
High turndown ratio
Various options for end connection type
Easy maintenance
Complies with API 614
Handwheel or T-handle
Spring chamber threaded vent
Sealing washer to allow pressure to be applied to the spring chamber
Back pressure regulator / pressure reducing valve with spring setting range from 2 to 375 psig (0.14 to 25.9 bar)
Body size from 1/4″ to 2″
End connection type: Flange, NPT, SW (socket weld), welded
Body material: Gray cast iron, LCC or WCC steel, CF8M stainless steel, CF3M stainless steel, Monel or Hastelloy
