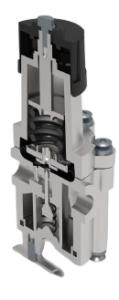

Regulator valve (70000 series) type A
Pressure regulating valves include pressure maintaining, reducing and relief valves to provide safe and efficient operating conditions and automatically respond to changes to maintain the set pressure. Depending on the inlet/outlet control pressure, flow capacity and temperature, PSM regulators are classified into six types: Type A-F. Pressure regulating valves include pressure maintaining, reducing and relief valves to provide safe and efficient operating conditions and automatically respond to changes to maintain the set pressure. Depending on the inlet/outlet control pressure, flow capacity and temperature, PSM regulators are classified into six types: Type A-F.
Product Information
Suitable for sour gas and corrosive applications or environments
Very high stability and repeatability
Low pressure drop
Threaded valve for collecting exhaust gas
With internal filter and droplet collection chamber
With manual or automatic drain option
Ability to use the filter independently (without other components)
Ability to mount on a panel, bracket or pipe
Very accurate and superior pressure regulation features
Automatic discharge of excess pressure in the downstream part of the system
Non-Relieving
Socket Head Set Screw
Micron Filter
Mounting Bracket/Base
Pressure Gauge
Tamper Resistant Cover
Low Bleed Diaphragm
Soft Relief Seat
Regulator/Bleed Valve with Spring Adjustment Range 5 to 100 psig (0.35 to 7 bar)
Port Size: 1/4 in.
Connection Type: NPT
Body Material: Die-Cast Aluminum
Trim Material: Stainless Steel, VALOX 420, NBR, Neoprene/416 Stainless Steel, Zinc Plated Carbon Steel
